Drop a DXF. Get cut time, pierces, nesting yields, and a commercial PDF quote in seconds. No installation. No account required. Runs 100% in your browser.
From customer drawing to billable PDF proposal in under 10 seconds.
Drag & drop any AutoCAD ASCII 2D DXF or SVG. The engine heals broken polylines, connects open contours, detects inch vs mm units, and isolates outer borders from internal cutouts.
Instantly computes exact linear cut inches, total pierce points, machine cycle time based on 4kW–12kW feed tables, assist gas consumption, and packs parts onto 4×8 or 5×10 sheets.
Download a branded Net 30 commercial PDF quote, copy an itemized email breakdown, or share directly to WhatsApp. Machine operator job card generated automatically.
Everything required to price jobs accurately without waiting on heavy desktop CAM seats.
Customer CAD files are notoriously messy. SheetDXF heals fragmented vectors, bridges micro-gaps, identifies outer perimeters vs interior cutouts, and detects drawing units automatically.
Not rough guesses. Speeds are based on calibrated cutting tables for 4kW, 6kW, 10kW, and 12kW fiber lasers across Carbon Steel (A36), Stainless (304/316), and Aluminum (5052/6061) with N2, O2, and Air.
Packs single parts or multi-part assembly batches onto standard 4×8 ft, 5×10 ft, or custom mill sheets. Accounts for kerf spacing, sheet margins, and calculates true skeleton scrap percentage.
Enforces the 1:1 thickness rule. Flags hole diameters smaller than plate thickness (d < t) where thermal blowout risks laser nozzle damage, with a 1-click auto-skip toggle.
One-click professional manufacturing PDF proposals itemizing cutting labor, piercing, plate handling, and secondary operations (bending, tapping, powder coat) plus machine operator cut sheets.
Paste a single script tag onto your WordPress, Wix, Squarespace, or Webflow site. Let prospective buyers upload DXFs and receive self-service quotes based strictly on your shop rates.

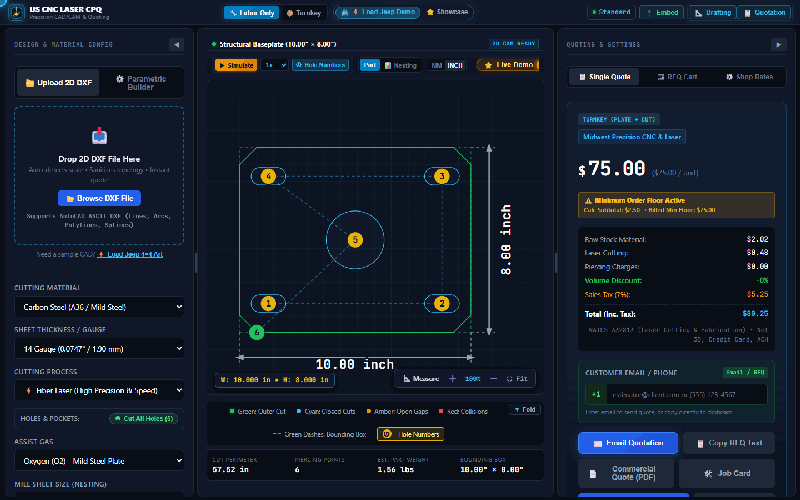

Experience the speed of the engine directly below, or switch to the animated simulation walkthrough.
Free for estimators and engineers. Pro for growing fabricators and job shops.
Instant estimates directly in your browser. No signup required.
Turn your job shop website into an automated quoting storefront.
Real numbers from production laser cutting operations.
Average DXF vector calculation, contour healing & pierce analysis time.
Calibrated cutting tables for Trumpf, Bystronic, Amada & fiber laser resonators.
Standard sheet sizes supported with true skeleton scrap and remnant tracking.
Private client-side processing. CAD geometry never leaves your local browser.
One script tag turns your existing WordPress, Wix, Squarespace, or Webflow site into a self-service quoting storefront.
